The HB Series, designed with pressure external to bellows, is extremely compact to save space. Bellows head is slotted to ride on an anti-torque rail.

Expansion Compensator w/ Copper Sweat Ends - EFP

.75"
$142.38
Skip to product information
The HB Series, designed with pressure external to bellows, is extremely compact to save space. Bellows head is slotted to ride on an anti-torque rail.
  • The HB Series, designed with pressure external to bellows, is extremely compact to save space. Bellows head is slotted to ride on an anti-torque rail.
  • Expansion Compensator w/ Copper Sweat Ends - EFP
Expansion Compensator w/ Copper Sweat Ends - EFP

Expansion Compensator w/ Copper Sweat Ends - EFP

$142.38
Size
HBFFS0075
Technical Specifications
Connection: Sweat
Axial Compression: 2"
Axial Extension: .5"
Pressure: 150 PSI
Temperature: 400 deg F
Test Pressure: 225 PSI

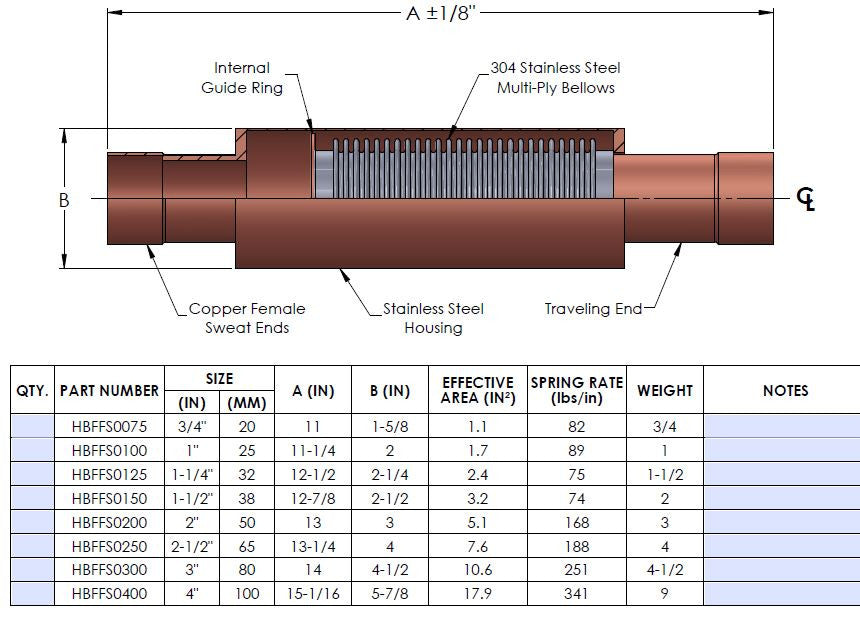

Expansion Compensator

With female copper sweat ends

2″ of compression, 1/2″ extension (2-1/2″ total stroke), female copper sweat ends

3/4″ to 3″ pipe sizes. HB Series Compensators are tested to a pressure of 225 psi for the recommended maximum operating pressure of 150 psi. Maximum temperature: 400° F.

The HB Series, designed with pressure external to bellows, is extremely compact to save space. Bellows head is slotted to ride on an anti-torque rail.

Vertical or Horizontal Installation. Requires no maintenance.



All-metal construction includes a stainless steel bellows and high quality carbon steel housings and fittings. Welded construction throughout with traveling nipple tack-welded with clip to insure proper installation. Model HB Series is available with SS housing and copper sweat ends for installation in copper lines.
