Cla-Val X101 Brass Position Indicator Site Glass
2" Valve Stock # C8972G
$230.85
Skip to product information
X101 Valve Position Indicator
STANDARD FEATURES
• Positive Visual Indicator
• Frictionless
• Leak Proof
• Easy Maintenance and Cleaning
• Protected Indicator Rod

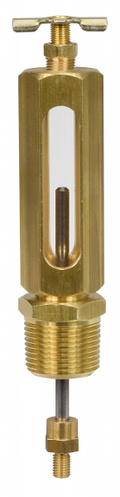

The Cla-Val Model X101 Visual Position Indicator is designed to display Cla-Val valve position quickly and easily. A solid brass indicator rod fastened directly to the valve stem moves up and down inside a pyrex tube. The tube is contained within a brass housing which is open on two opposite sides to permit clear vision of the indicator rod. To purge air that may be trapped in the valve cover, a vent valve in the top of the housing is provided. Model X101 valve position indicator is furnished complete for installation on specified size Cla-Val Automatic Control Valve.
Cla-Val X101 Brass Position Indicator Site Glass
$230.85
C8972G
STANDARD FEATURES
• Positive Visual Indicator
• Frictionless
• Leak Proof
• Easy Maintenance and Cleaning
• Protected Indicator Rod
The Cla-Val Model X101 Visual Position Indicator is designed to display Cla-Val valve position quickly and easily. A solid brass indicator rod fastened directly to the valve stem moves up and down inside a pyrex tube. The tube is contained within a brass housing which is open on two opposite sides to permit clear vision of the indicator rod. To purge air that may be trapped in the valve cover, a vent valve in the top of the housing is provided. Model X101 valve position indicator is furnished complete for installation on specified size Cla-Val Automatic Control Valve.
