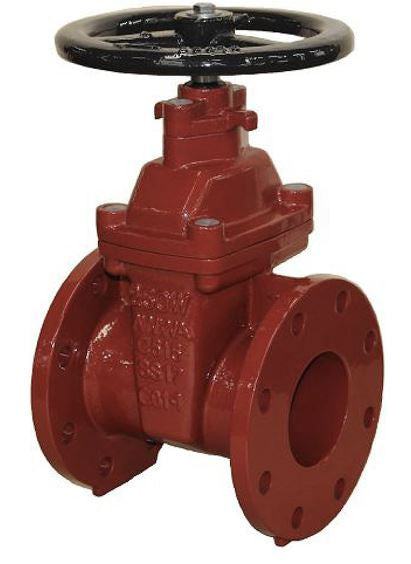

Ductile Iron Flanged AWWA C-515 Gate Valves

801 Series Ductile Iron Flanged AWWA C-515 Gate Valves - SOVAL

2 in
$237.51
Skip to product information
Ductile Iron Flanged AWWA C-515 Gate Valves
  • Ductile Iron Flanged AWWA C-515 Gate Valves
  • Ductile Iron Flanged AWWA C-515 Gate Valves
801 Series Ductile Iron Flanged AWWA C-515 Gate Valves - SOVAL

801 Series Ductile Iron Flanged AWWA C-515 Gate Valves - SOVAL

$237.51
Size
801-020F
Technical Specifications
Type: Ductile Iron Flanged AWWA C-515 Gate Valves
Style: Gate Valve
Connection: Flanged
Body: Ductile Iron
Model: 801
Operator: Nut Operator / Hand Wheel
Standard: AWWA / NSF

The  801 Series AWWA NRS Resilient Seated Gate Valves are manufactured in accordance with AWWA C515 Standard. Our Valve body, bonnet, and wedge are constructed with high strength ductile-iron. The wedge is encapsulated with EPDM rubber, Stainless steel stem and bolting are standard. Flanges to ANSI B16.1, Class 125. Valves are fusion bonded epoxy coated interior and exterior to AWWA C550 Standard. Rated at 300psi and available with Hand Wheel or Operating Nut.

SPECIFICATIONS • DESIGNED AND TESTED ACCORDING TO AWWA C515 STANDARD • NSF61/372 FOR SIZES 3”–24” • RESILIENT SEATED, NON-RISING STEM • CLASS 125 FLANGES, ASME B16.1 • INTERIOR AND EXTERIOR FUSION BONDED EPOXY COATING, AWWA C550 STANDARD • WORKING PRESSURE: 300 PSI • WORKING TEMPERATURE: 4°F–185°F • OPERATOR: HANDWHEEL OR 2” OPERATING NUT
